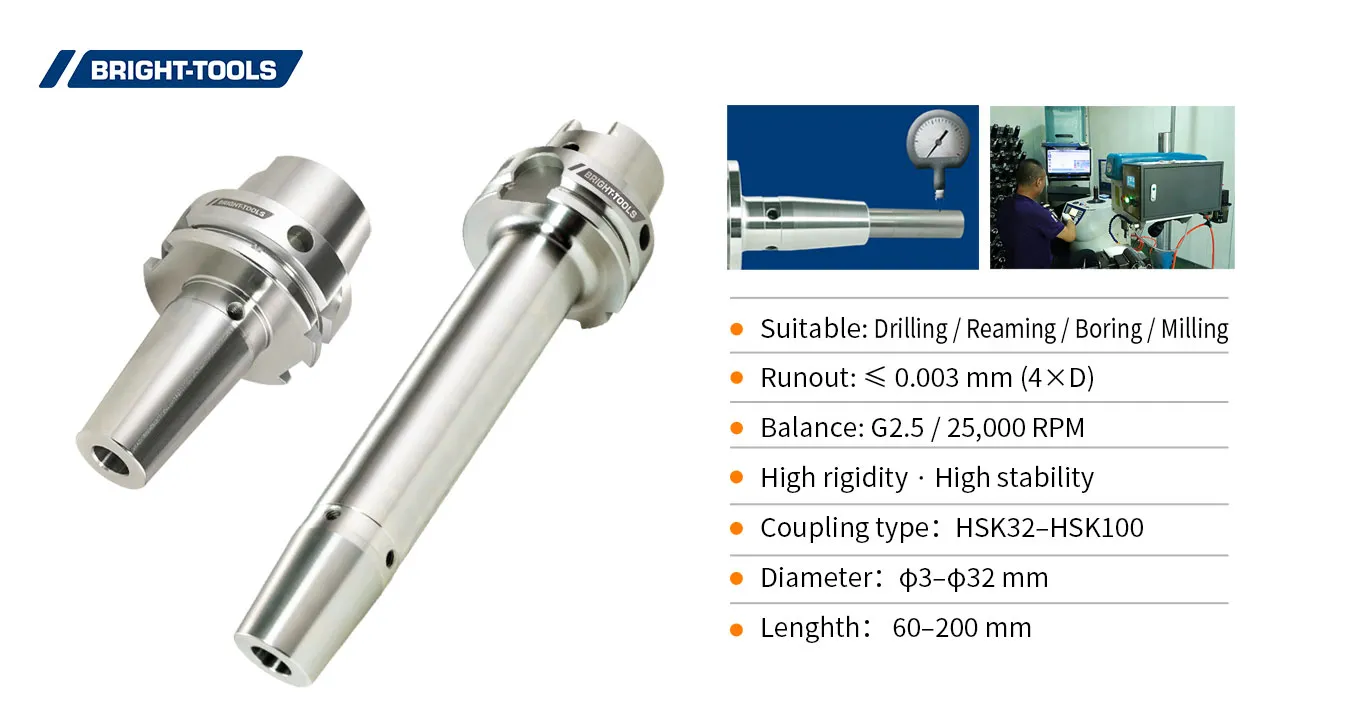

HSK-Aスタンダードシュリンクフィットチャックは、耐熱高温加工鋼を使用して、鋼の熱膨張特性を介してHSSおよび固体カーバイド工具をクランプします。 0,003mmの精度と正確なテーパー公差により、工具の寿命が向上し、その後の細かいバランスにより、表面品質が向上し、機械スピンドルの摩耗が少なくなります。
1.高いrunoutの正確さ (< 0.003mm)
2.クランプ穴の高押しによる極端なクランプトルク
3.短い面取り
4.ネジ付きのシンプルで速いバランスのためのネジ付きボア

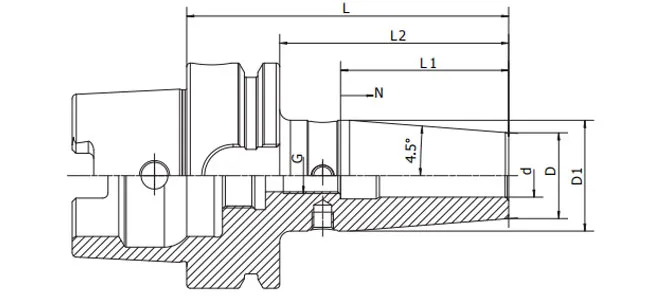

| サイズ | D | D | D1 | L | L2 | L1 | N | G |
| HSK32A-SF03-65 | 3 | 15 | 20 | 65 | 45 | - | - | - |
| HSK32A-SF04-65 | 4 | 15 | 20 | 65 | 45 | - | - | - |
| HSK32A-SF05-65 | 5 | 15 | 20 | 65 | 45 | - | - | - |
| HSK32A-SF06-75 | 6 | 21 | 26 | 75 | 55 | 36 | 10 | M5 |
| HSK32A-SF08-75 | 8 | 21 | 26 | 75 | 55 | 36 | 10 | M6 |
| HSK32A-SF10-75 | 10 | 24 | 29 | 75 | 55 | 42 | 10 | M8x1 |
| HSK32A-SF12-80 | 12 | 24 | 29 | 80 | 60 | 47 | 5 | M10x1 |
| HSK40A-SF03-60 | 3 | 15 | 20 | 60 | 40 | - | - | - |
| HSK40A-SF04-60 | 4 | 15 | 20 | 60 | 40 | - | - | - |
| HSK40A-SF05-60 | 5 | 15 | 20 | 60 | 40 | - | - | - |
| HSK40A-SF06-80 | 6 | 21 | 27 | 80 | 60 | 36 | 10 | M5 |
| HSK40A-SF08-80 | 8 | 21 | 27 | 80 | 60 | 36 | 10 | M6 |
| HSK40A-SF10-80 | 10 | 24 | 32 | 80 | 60 | 42 | 10 | M8x1 |
| HSK40A-SF12-90 | 12 | 24 | 32 | 90 | 70 | 47 | 10 | M10x1 |
| HSK40A-SF14-90 | 14 | 27 | 34 | 90 | 70 | 47 | 10 | M10x1 |
| HSK40A-SF16-90 | 16 | 27 | 34 | 90 | 70 | 50 | 10 | M12x1 |
| HSK50A-SF03-80 | 3 | 15 | 20 | 80 | 54 | - | - | - |
| HSK50A-SF04-80 | 4 | 15 | 20 | 80 | 54 | - | - | - |
| HSK50A-SF05-80 | 5 | 15 | 20 | 80 | 54 | - | - | - |
| HSK50A-SF06-80 | 6 | 21 | 27 | 80 | 54 | 36 | 10 | M5 |
| HSK50A-SF08-80 | 8 | 21 | 27 | 80 | 54 | 36 | 10 | M6 |
| HSK50A-SF10-85 | 10 | 24 | 32 | 85 | 59 | 42 | 10 | M8x1 |
| HSK50A-SF12-90 | 12 | 24 | 32 | 90 | 64 | 47 | 10 | M10x1 |
| HSK50A-SF14-90 | 14 | 27 | 34 | 90 | 64 | 47 | 10 | M10x1 |
| HSK50A-SF16-95 | 16 | 27 | 34 | 95 | 69 | 50 | 10 | M12x1 |
| HSK50A-SF18-95 | 18 | 33 | 42 | 95 | 69 | 50 | 10 | M12x1 |
| HSK50A-SF20-100 | 20 | 33 | 42 | 100 | 74 | 52 | 10 | M16x1 |
| HSK63A-SF03-80 | 3 | 15 | 20 | 80 | 54 | - | - | - |
| HSK63A-SF04-80 | 4 | 15 | 20 | 80 | 54 | - | - | - |
| HSK63A-SF05-80 | 5 | 15 | 20 | 80 | 54 | - | - | - |
| HSK63A-SF06-80 | 6 | 21 | 26.5 | 80 | 54 | 36 | 10 | M5 |
| HSK63A-SF08-80 | 8 | 21 | 26.5 | 80 | 54 | 36 | 10 | M6 |
| HSK63A-SF10-85 | 10 | 24 | 30.5 | 85 | 59 | 42 | 10 | M8x1 |
| HSK63A-SF12-90 | 12 | 24 | 31 | 90 | 64 | 47 | 10 | M10x1 |
| HSK63A-SF14-90 | 14 | 27 | 34 | 90 | 64 | 47 | 10 | M10x1 |
| HSK63A-SF16-95 | 16 | 27 | 34 | 95 | 69 | 50 | 10 | M12x1 |
| HSK63A-SF18-95 | 18 | 33 | 41 | 95 | 69 | 50 | 10 | M12x1 |
| HSK63A-SF20-100 | 20 | 33 | 42 | 100 | 74 | 52 | 10 | M16x1 |
| HSK63A-SF25-115 | 25 | 44 | 52.5 | 115 | 89 | 58 | 10 | M16x1 |
| HSK63A-SF32-120 | 32 | 44 | 52.5 | 120 | 94 | 62 | 10 | M16x1 |
| HSK63A-SF03-120 | 3 | 15 | 20 | 120 | 94 | - | - | - |
| HSK63A-SF04-120 | 4 | 15 | 20 | 120 | 94 | - | - | - |
| HSK63A-SF05-120 | 5 | 15 | 20 | 120 | 94 | - | - | - |
| HSK63A-SF06-120 | 6 | 21 | 27 | 120 | 94 | 36 | 10 | M5 |
| HSK63A-SF08-120 | 8 | 21 | 27 | 120 | 94 | 36 | 10 | M6 |
| HSK63A-SF10-120 | 10 | 24 | 32 | 120 | 94 | 42 | 10 | M8x1 |
| HSK63A-SF12-120 | 12 | 24 | 32 | 120 | 94 | 47 | 10 | M10x1 |
| HSK63A-SF14-120 | 14 | 27 | 34 | 120 | 94 | 47 | 10 | M10x1 |
| HSK63A-SF16-120 | 16 | 27 | 34 | 120 | 94 | 50 | 10 | M12x1 |
| HSK63A-SF18-120 | 18 | 33 | 42 | 120 | 94 | 50 | 10 | M12x1 |
| HSK63A-SF20-120 | 20 | 33 | 42 | 120 | 94 | 52 | 10 | M16x1 |
| HSK63A-SF25-120 | 25 | 44 | 52.5 | 120 | 94 | 58 | 10 | M16x1 |
| HSK63A-SF03-160 | 3 | 15 | 25 | 160 | 134 | - | - | - |
| HSK63A-SF04-160 | 4 | 15 | 25 | 160 | 134 | - | - | - |
| HSK63A-SF05-160 | 5 | 15 | 25 | 160 | 134 | - | - | - |
| HSK63A-SF06-160 | 6 | 21 | 32 | 160 | 134 | 36 | 10 | M5 |
| HSK63A-SF08-160 | 8 | 21 | 32 | 160 | 134 | 36 | 10 | M6 |
| HSK63A-SF10-160 | 10 | 24 | 34 | 160 | 134 | 42 | 10 | M8x1 |
| 12 | 24 | 34 | 160 | 134 | 47 | 10 | M10x1 | |
| HSK63A-SF14-160 | 14 | 27 | 42 | 160 | 134 | 47 | 10 | M10x1 |
| HSK63A-SF16-160 | 16 | 27 | 42 | 160 | 134 | 50 | 10 | M12x1 |
| HSK63A-SF18-160 | 18 | 33 | 51 | 160 | 134 | 50 | 10 | M12x1 |
| HSK63A-SF20-160 | 20 | 33 | 51 | 160 | 134 | 52 | 10 | M16x1 |
| HSK63A-SF25-160 | 25 | 44 | 52.5 | 160 | 134 | 58 | 10 | M16x1 |
| HSK63A-SF32-160 | 32 | 44 | 52.5 | 160 | 134 | 62 | 10 | M16x1 |
| HSK63A-SF06-200 | 6 | 21 | 32 | 200 | 174 | 36 | 10 | M5 |
| HSK63A-SF08-200 | 8 | 21 | 32 | 200 | 174 | 36 | 10 | M6 |
| HSK63A-SF10-200 | 10 | 24 | 34 | 200 | 174 | 42 | 10 | M8x1 |
| HSK63A-SF12-200 | 12 | 24 | 34 | 200 | 174 | 47 | 10 | M10x1 |
| HSK63A-SF14-200 | 14 | 27 | 42 | 200 | 174 | 47 | 10 | M10x1 |
| HSK63A-SF16-200 | 16 | 27 | 42 | 200 | 174 | 50 | 10 | M12x1 |
| HSK63A-SF18-200 | 18 | 33 | 51 | 200 | 174 | 50 | 10 | M12x1 |
| HSK63A-SF20-200 | 20 | 33 | 51 | 200 | 174 | 52 | 10 | M16x1 |
| HSK63A-SF25-200 | 25 | 44 | 52.5 | 200 | 174 | 58 | 10 | M16x1 |
| HSK63A-SF32-200 | 32 | 44 | 52.5 | 200 | 174 | 62 | 10 | M16x1 |
| HSK80A-SF06-85 | 6 | 21 | 27 | 85 | 59 | 36 | 10 | M5 |
| HSK80A-SF08-85 | 8 | 21 | 27 | 85 | 59 | 36 | 10 | M6 |
| 10 | 24 | 32 | 90 | 64 | 42 | 10 | M8x1 | |
| HSK80A-SF12-95 | 12 | 24 | 32 | 95 | 69 | 47 | 10 | M10x1 |
| HSK80A-SF14-95 | 14 | 27 | 34 | 95 | 69 | 47 | 10 | M10x1 |
| HSK80A-SF16-100 | 16 | 27 | 34 | 100 | 74 | 50 | 10 | M12x1 |
| HSK80A-SF18-100 | 18 | 33 | 42 | 100 | 74 | 50 | 10 | M12x1 |
| HSK80A-SF20-105 | 20 | 33 | 42 | 105 | 79 | 52 | 10 | M16x1 |
| HSK80A-SF25-115 | 25 | 44 | 53 | 115 | 89 | 58 | 10 | M16x1 |
| HSK80A-SF32-120 | 32 | 44 | 53 | 120 | 94 | 62 | 10 | M16x1 |
| HSK100A-SF03-85 | 3 | 15 | 20 | 85 | 56 | - | - | - |
| HSK100A-SF04-85 | 4 | 15 | 20 | 85 | 56 | - | - | - |
| HSK100A-SF05-85 | 5 | 15 | 20 | 85 | 56 | - | - | - |
| HSK100A-SF06-85 | 6 | 21 | 26.5 | 85 | 56 | 36 | 10 | M5 |
| HSK100A-SF08-85 | 8 | 21 | 26.5 | 85 | 56 | 36 | 10 | M6 |
| HSK100A-SF10-90 | 10 | 24 | 30.5 | 90 | 61 | 42 | 10 | M8x1 |
| HSK100A-SF12-95 | 12 | 24 | 31 | 95 | 66 | 47 | 10 | M10x1 |
| HSK100A-SF14-95 | 14 | 27 | 34 | 95 | 66 | 47 | 10 | M10x1 |
| HSK100A-SF16-100 | 16 | 27 | 34 | 100 | 71 | 50 | 10 | M12x1 |
| HSK100A-SF18-100 | 18 | 33 | 41 | 100 | 71 | 50 | 10 | M12x1 |
| HSK100A-SF20-105 | 20 | 33 | 42 | 105 | 76 | 52 | 10 | M16x1 |
| HSK100A-SF25-115 | 25 | 44 | 53 | 115 | 86 | 58 | 10 | M16x1 |
| 32 | 44 | 53 | 120 | 91 | 62 | 10 | M16x1 | |
| HSK100A-SF06-120 | 6 | 21 | 27 | 120 | 91 | 36 | 10 | M5 |
| HSK100A-SF08-120 | 8 | 21 | 27 | 120 | 91 | 36 | 10 | M6 |
| HSK100A-SF10-120 | 10 | 24 | 32 | 120 | 91 | 42 | 10 | M8x1 |
| HSK100A-SF12-120 | 12 | 24 | 32 | 120 | 91 | 47 | 10 | M10x1 |
| HSK100A-SF14-120 | 14 | 27 | 34 | 120 | 91 | 47 | 10 | M10x1 |
| HSK100A-SF16-120 | 16 | 27 | 34 | 120 | 91 | 50 | 10 | M12x1 |
| HSK100A-SF18-120 | 18 | 33 | 42 | 120 | 91 | 50 | 10 | M12x1 |
| HSK100A-SF20-120 | 20 | 33 | 42 | 120 | 91 | 52 | 10 | M16x1 |
| HSK100A-SF25-120 | 25 | 44 | 53 | 120 | 91 | 58 | 10 | M16x1 |
| HSK100A-SF06-160 | 6 | 21 | 32 | 160 | 131 | 36 | 10 | M5 |
| HSK100A-SF08-160 | 8 | 21 | 32 | 160 | 131 | 36 | 10 | M6 |
| HSK100A-SF10-160 | 10 | 24 | 34 | 160 | 131 | 42 | 10 | M8x1 |
| HSK100A-SF12-160 | 12 | 24 | 34 | 160 | 131 | 47 | 10 | M10x1 |
| HSK100A-SF14-160 | 14 | 27 | 42 | 160 | 131 | 47 | 10 | M10x1 |
| HSK100A-SF16-160 | 16 | 27 | 42 | 160 | 131 | 50 | 10 | M12x1 |
| HSK100A-SF18-160 | 18 | 33 | 50.5 | 160 | 131 | 50 | 10 | M12x1 |
| HSK100A-SF20-160 | 20 | 33 | 50.5 | 160 | 131 | 52 | 10 | M16x1 |
| HSK100A-SF25-160 | 25 | 44 | 60 | 160 | 131 | 58 | 10 | M16x1 |
| 32 | 44 | 60 | 160 | 131 | 62 | 10 | M16x1 | |
| HSK100A-SF06-200 | 6 | 21 | 32 | 200 | 171 | 36 | 10 | M5 |
| HSK100A-SF08-200 | 8 | 21 | 32 | 200 | 171 | 36 | 10 | M6 |
| HSK100A-SF10-200 | 10 | 24 | 34 | 200 | 171 | 42 | 10 | M8x1 |
| HSK100A-SF12-200 | 12 | 24 | 34 | 200 | 171 | 47 | 10 | M10x1 |
| HSK100A-SF14-200 | 14 | 27 | 42 | 200 | 171 | 47 | 10 | M10x1 |
| HSK100A-SF16-200 | 16 | 27 | 42 | 200 | 171 | 50 | 10 | M12x1 |
| HSK100A-SF18-200 | 18 | 33 | 51 | 200 | 171 | 50 | 10 | M12x1 |
| HSK100A-SF20-200 | 20 | 33 | 51 | 200 | 171 | 52 | 10 | M16x1 |
| HSK100A-SF25-200 | 25 | 44 | 60 | 200 | 171 | 58 | 10 | M16x1 |
| HSK100A-SF32-200 | 32 | 44 | 60 | 200 | 171 | 62 | 10 | M16x1 |
| サイズ | D | D | D1 | L | L2 | L1 | N | G |
| HSK63A-SF1/8-3.15" | 0.125" | 0.59" | 0.79" | 3.15" | 2.13" | - | - | - |
| HSK63A-SF3/16-3.15" | 0.187」 | 0.59" | 0.79" | 3.15" | 2.13" | - | - | - |
| HSK63A-SF1/4-3.15" | 0.250" | 0.83" | 1.06" | 3.15" | 2.13" | 1.42」 | 0.39" | M5 |
| HSK63A-SF5/16-3.15" | 0.312" | 0.83" | 1.06" | 3.15" | 2.13" | 1.42」 | 0.39" | M6 |
| HSK63A-SF3/8-3.35" | 0.375" | 0.94" | 1.26」 | 3.35」 | 2.32」 | 1.65" | 0.39" | M8x1 |
| HSK63A-SF1/2-3.54" | 0.500" | 1.06" | 1.34" | 3.54" | 2.52」 | 1.85」 | 0.39" | M10x1 |
| HSK63A-SF5/8-3.74"0.625" | 1.06" | 1.34" | 3.74」 | 2.72" | 1.97」 | 0.39" | M12x1 | |
| HSK63A-SF3/4-3.94" | 0.750" | 1.30" | 1.65" | 3.94" | 2.91」 | 2.05」 | 0.39" | M16x1 |
| HSK63A-SF1-4.53」 | 1.000」 | 1.73" | 2.07」 | 4.53」 | 3.50" | 2.44" | 0.39" | M16x1 |
| HSK63A-SF1/8-4.72" | 0.125" | 0.59" | 0.79" | 4.72」 | 3.70" | - | - | - |
| HSK63A-SF3/16-4.72" | 0.187」 | 0.59" | 0.79" | 4.72」 | 3.70" | - | - | - |
| HSK63A-SF1/4-4.72" | 0.250" | 0.83" | 1.06" | 4.72」 | 3.70" | 1.42」 | 0.39" | M5 |
| HSK63A-SF5/16-4.72" | 0.312" | 0.83" | 1.06" | 4.72」 | 3.70" | 1.42」 | 0.39" | M6 |
| HSK63A-SF3/8-4.72" | 0.375" | 0.94" | 1.26」 | 4.72」 | 3.70" | 1.65" | 0.39" | M8x1 |
| HSK63A-SF1/2-4.72" | 0.500" | 1.06" | 1.34" | 4.72」 | 3.70" | 1.85」 | 0.39" | M10x1 |
| HSK63A-SF5/8-4.72" | 0.625" | 1.06" | 1.34" | 4.72」 | 3.70" | 1.97」 | 0.39" | M12x1 |
| HSK63A-SF3/4-4.72" | 0.750" | 1.30" | 1.65" | 4.72」 | 3.70" | 2.05」 | 0.39" | M16x1 |
| HSK63A-SF1-4.72」 | 1.000」 | 1.73" | 2.07」 | 4.72」 | 3.70" | 2.44" | 0.39" | M16x1 |
| HSK63A-SF1-1/4-4.72" | 1.250" | 1.73" | 2.07」 | 4.72」 | 3.70" | 2.44" | 0.39" | M16x1 |
| HSK63A-SF1/8-6.3" | 0.125" | 0.59" | 1.06" | 6.30" | 5.28" | - | - | - |
| HSK63A-SF3/16-6.3" | 0.187」 | 0.59" | 1.06" | 6.30" | 5.28" | - | - | - |
| HSK63A-SF1/4-6.3" | 0.250" | 0.83" | 1.26」 | 6.30" | 5.28" | 1.42」 | 0.39" | M5 |
| HSK63A-SF5/16-6.3" | 0.312" | 0.83" | 1.26 & quOt; | 6.30" | 5.28" | 1.42」 | 0.39" | M6 |
| HSK63A-SF3/8-6.3" | 0.375" | 0.94" | 1.34" | 6.30" | 5.28" | 1.65" | 0.39" | M8x1 |
| HSK63A-SF1/2-6.3" | 0.500" | 1.06" | 1.65" | 6.30" | 5.28" | 1.85」 | 0.39" | M10x1 |
| HSK63A-SF5/8-6.3" | 0.625" | 1.06" | 1.65" | 6.30" | 5.28" | 1.97」 | 0.39" | M12x1 |
| HSK63A-SF3/4-6.3" | 0.750" | 1.30" | 2.01" | 6.30" | 5.28" | 2.05」 | 0.39" | M16x1 |
| HSK63A-SF1-6.3」 | 1.000」 | 1.73" | 2.07」 | 6.30" | 5.28" | 2.44" | 0.39" | M16x1 |
| HSK63A-SF1-1/4-6.3" | 1.250" | 1.73" | 2.07」 | 6.30" | 5.28" | 2.44" | 0.39" | M16x1 |
| HSK80A-SF1/4-3.35" | 0.250" | 0.83" | 1.06" | 3.35」 | 2.32」 | 1.42」 | 0.39" | M5 |
| HSK80A-SF3/8-3.54" | 0.375" | 0.94" | 1.26」 | 3.54" | 2.52」 | 1.65" | 0.39" | M8x1 |
| HSK80A-SF1/2-3.74" | 0.500" | 1.06" | 1.34" | 3.74」 | 2.72" | 1.85」 | 0.39" | M10x1 |
| HSK80A-SF5/8-3.94" | 0.625" | 1.06" | 1.34" | 3.94" | 2.91」 | 1.97」 | 0.39" | M12x1 |
| HSK80A-SF3/4-4.13" | 0.750" | 1.30" | 1.65" | 4.13" | 3.11" | 2.05」 | 0.39" | M16x1 |
| HSK80A-SF1-4.53」 | 1.000」 | 1.73" | 2.09」 | 4.53」 | 3.50" | 2.44" | 0.39" | M16x1 |
| HSK80A-SF1-1/4-4.72" | 1.250" | 1.73" | 2.09」 | 4.72」 | 3.70" | 2.44" | 0.39" | M16x1 |
| HSK100A-SF1/4-3.35" | 0.250" | 0.83" | 1.06" | 3.35」 | 2.20" | 1.42」 | 0.39" | M5 |
| HSK100A-SF3/8-3.54" | 0.375" | 0.94" | 1.26」 | 3.54" | 2.40" | 1.65" | 0.39" | M8x1 |
| HSK100A-SF1/2-3.74" | 0.500" | 1.06" | 1.34" | 3.74」 | 2.60" | 1.85」 | 0.39" | M10x1 |
| HSK100A-SF5/8-3.94" | 0.625" | 1.06" | 1.34" | 3.94" | 2.80」 | 1.97」 | 0.39" | M12x1 |
| HSK100A-SF3/4-4.13" | 0.750" | 1.30" | 1.65" | 4.13" | 2.99」 | 2.05」 | 0.39" | M16x1 |
| HSK100A-SF1-4.53」 | 1.000」 | 1.73" | 2.09」 | 4.53」 | 3.39」 | 2.44" | 0.39" | M16x1 |
| HSK100A-SF1/4-4.72" | 0.250" | 0.83" | 1.06" | 4.72」 | 3.58" | 1.42」 | 0.39" | M5 |
| HSK100A-SF3/8-4.72" | 0.375" | 0.94" | 1.26」 | 4.72」 | 3.58" | 1.65" | 0.39" | M8x1 |
| HSK100A-SF1/2-4.72" | 0.500" | 1.06" | 1.34" | 4.72」 | 3.58" | 1.85」 | 0.39" | M10x1 |
| HSK100A-SF5/8-4.72" | 0.625" | 1.06" | 1.34" | 4.72」 | 3.58" | 1.97」 | 0.39" | M12x1 |
| HSK100A-SF3/4-4.72" | 0.750" | 1.30" | 1.65" | 4.72」 | 3.58" | 2.05」 | 0.39" | M16x1 |
| HSK100A-SF1-4.72」 | 1.000」 | 1.73" | 2.09」 | 4.72」 | 3.58" | 2.44" | 0.39" | M16x1 |
| HSK100A-SF1-1/4-4.72" | 1.250" | 1.73" | 2.09」 | 4.72」 | 3.58" | 2.44" | 0.39" | M16x1 |
| HSK100A-SF1/4-6.30" | 0.250" | 0.83" | 1.26」 | 6.30" | 5.16」 | 1.42」 | 0.39" | M5 |
| HSK100A-SF3/8-6.30" | 0.375" | 0.94" | 1.34" | 6.30" | 5.16」 | 1.65" | 0.39" | M8x1 |
| HSK100A-SF1/2-6.30" | 0.500" | 1.06" | 1.65" | 6.30" | 5.16」 | 1.85」 | 0.39" | M10x1 |
| HSK100A-SF5/8-6.30" | 0.625" | 1.06" | 1.65" | 6.30" | 5.16」 | 1.97」 | 0.39" | M12x1 |
| HSK100A-SF3/4-6.30" | 0.750" | 1.30" | 2.01" | 6.30" | 5.16」 | 2.05」 | 0.39" | M16x1 |
| HSK100A-SF1-6.30」 | 1.000」 | 1.73" | 2.36" | 6.30" | 5.16」 | 2.44" | 0.39" | M16x1 |
| HSK100A-SF1-1/4-6.30" | 1.250" | 1.73" | 2.36" | 6.30" | 5.16」 | 2.44" | 0.39" | M16x1 |
English
日本語
한국어
Deutsch
Español
italiano
русский
tiếng việt
Türkçe
português
فارسی
zh-CN
